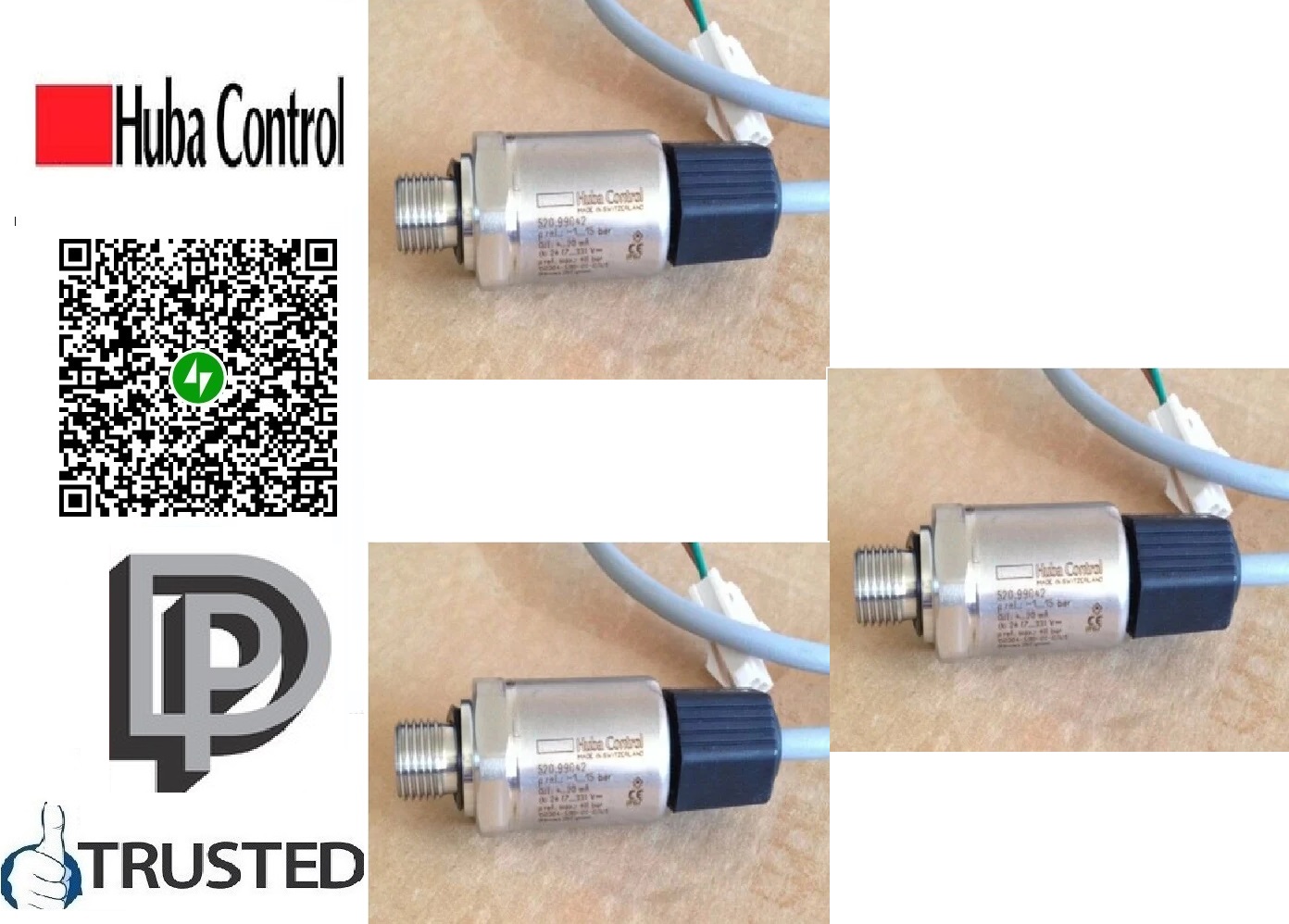

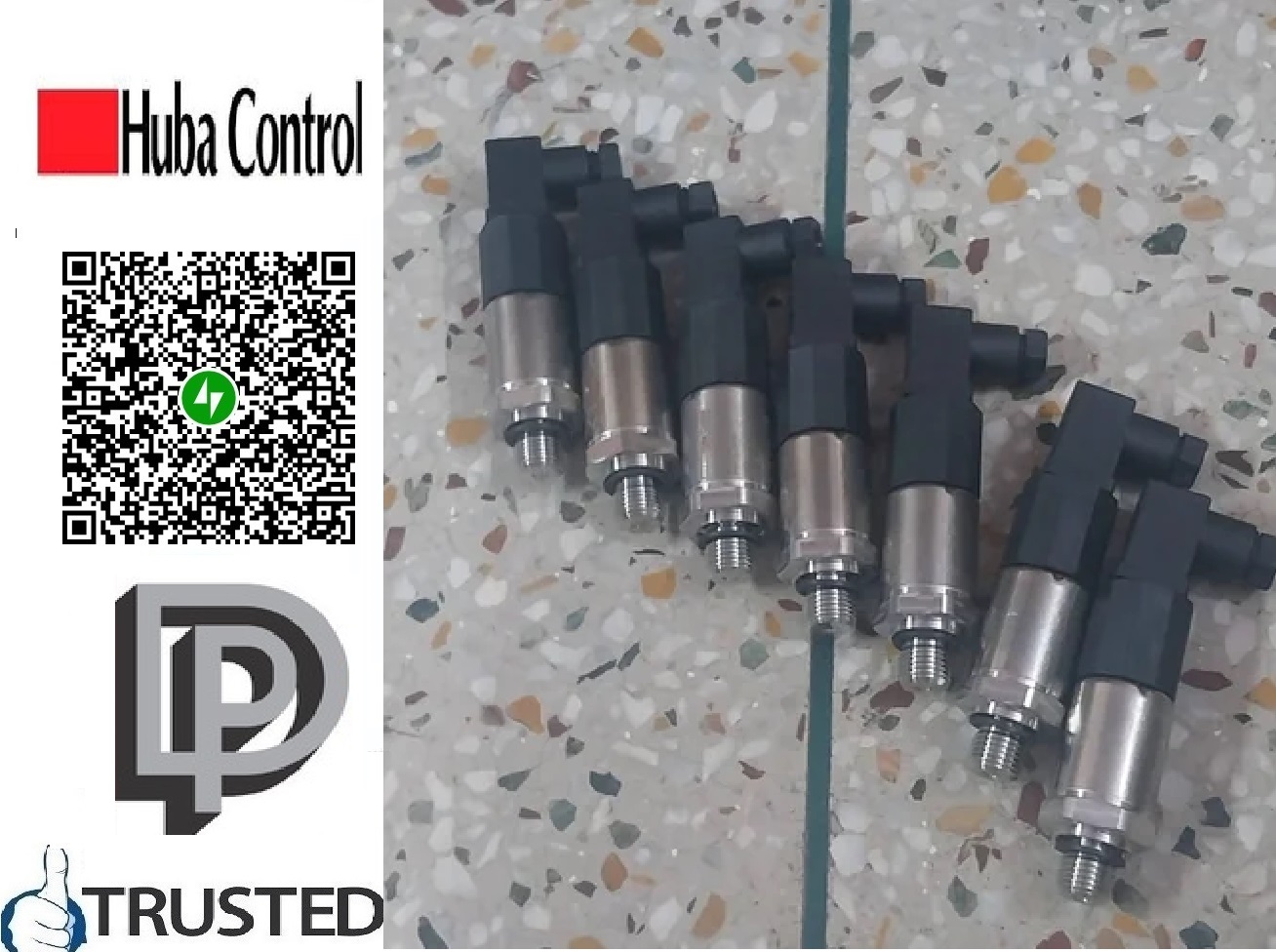

Huba : Pressure Transmitter : Model 520.943S022401 RANGE 0-200 BAR Output 0 To 10 VDC

Huba : Pressure Transmitter : Model 520.943S022401 RANGE 0-200 BAR Output 0 To 10 VDC

• Relative Pressure Transmitter
• Type – 520
• Manufacturer – HUBA CONTROL
• Model – 520.943S022401
• RANGE – 0-200 BAR
• OUTPUT –  0 To 10 VDC
• Supply – 24 (12….33) V
• CONNECTION – 1/4″ NPT 304 SS
• COUNTRY OF ORIGIN – INDIA

The  Compact  Type  520  Pressure  Transmitter  Is  Based  Upon The  Huba  Control  Developed  Thick  Film  Technology  Where  The  Pressure Measuring Cell Is Fully Welded.

This  Transmitter  Meets The  High  Burst  Protection  Demands  And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.

Pressure Range

• -1 … 9 bar / 0 … 2.5 – 1000 bar
• Compact,Rugged Construction
• Welded Without Sealing parts,No Elastomer Seals
• Large Selection Of Connections Available.
• Saving Time By Quick Cable Mounting By The Customer With Swift Connector

General Features:

• Compact, Rugged Construction
• Large Selection Of Connections Available
• Welded Without Sealing Parts, No Elastomer Seals
• Medium: Liquids, Gases And Refrigerants (Including Ammonia)
• Saving Time By Quick Cable Mounting By The Customer With Swift Connector

SERIES	Type 520
PRESSURE RANGE	0 … 200 BAR
POWER SUPPLY	7 – 33 VDC
OUTPUT DC	0 To 10 VDC
ELECTRICAL CONNECTION	M12x1
DESCRIPTION	Pressure Transmitter
PRESSURE CONNECTION	G 1/4
INDEX PROTECTION IP	IP67
ACCURACY	± 0.3 % fs
MEDIUM TEMPERATURE RANGE	-15 … +125 °C
RESPONSE TIME	< 2 ms, (1 ms typical)
MATERIAL	Connection Stainless Steel 1.4404 / AISI 316L
DIMENSIONS (MM)	24 x 46.7 MM
CONFORMITY	EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110

Additional Information:

• Item Code: Huba : Pressure Transmitter : Model 520.943S022401 RANGE 0-200 BAR Output 0 To 10 VDC
• WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,
• E-mail :
• dpsharma74@yahoo.co.in,
• dpsharma1974@gmail.com,
• dpsharma949@gmail.com
• Mr D.P.SHARMA 9871014210
• WhatsApp number :9871014210,9268631221
• Websites :
• www.dpengineers.in,
• www.dpengineer.in,
• www.dpengineerindia.com,
• www.dpengineersindia.in,
• www.dpengineers.info,
• www.dpengineer.info,
• www.dp-engineers.com,
• www.dpengineerindia.in,
• www.dpengineersindia.net,
• www.dpengineersdelhi.co.in,
• www.dpengineersdelhi.com,
• www.dp-engineers.co.in,
• www.dpengineersdelhi.net,
•

Sifter Sieves

Mechanical Sifter Sieves: - Sieves for mech. shifter size of 20” and 30” and mesh size as per clients choice. In big sizes supports are provided for the rigidity and stiffness.

We are looking queries from Sri lanka, Nepal, Bangladesh,

Other Information

Pay Mode Terms:

• T/T (Bank Transfer)

SS Sifter Sieves

We manufacture SS Sifter Sieves in SS 304 and SS 316 with Silicon Molded / without Silicon molded .

Size

• Dia 48"- 4 Mesh To 200 Mesh
• Dia 48"- 4 Mesh To 200 Mesh
• Dia 48"- 4 Mesh To 200 Mesh

Other Information

Pay Mode Terms:

• T/T (Bank Transfer)

Pharma Sifter Sieves

We are engaged in offering our clients with a qualitative range of Pharma Sifter Sieves. These are offered in diameters of 20, 30, 40, and 48 inches and also as per the drawings from 4 meshes to 500 meshes with additional cross support of 18 SWGS. Our range is cross welded to the bottom of the ring with additional sieves. This supports sieves as per customer specifications and we also silicon mould sifter sieves using SS 316/304.

Mesh Nos	Mesh Nos	Indian Std	Microns
4	5	4.00mm	4000
5	6	3.35mm	3353
6	7	2.80mm	2812
7	8	2.36mm	2411
8	10	2.00mm	2057
10	12	1.70mm	4000
12	14	1.40mm	1405
14	16	1.18mm	1204
16	18	1.00mm	1204
18	20	0.850mm	850
22	25	0.710mm	710
25	30	0.600mm	600
30	35	0.500mm	500
36	40	0.425mm	420
44	45	0.355mm	355
52	50	0..300mm	300
60	60	0.250mm	250
72	70	0.212mm	210
85	80	0.180mm	180
100	100	0.150mm	150

Other Information

Pay Mode Terms:

• T/T (Bank Transfer)
